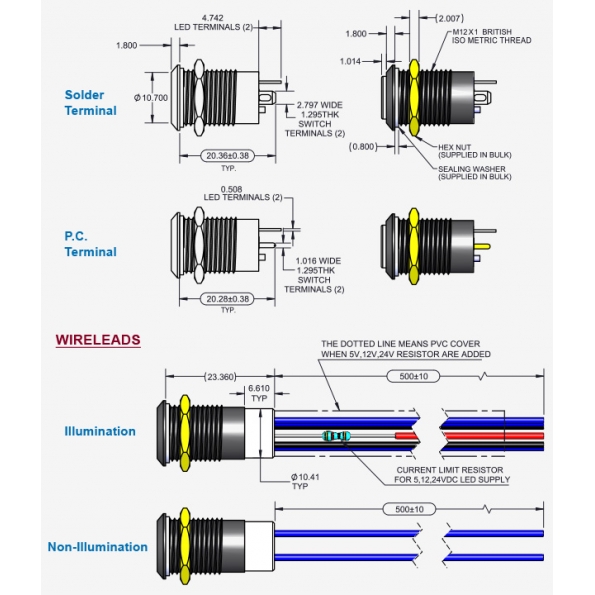

開孔尺寸( Panel cut) : 12mm
防水等級(Ingress protection): IP67
工作溫度(Working temperature): -40C~85C
開關次數( Action): 復歸( momentary) 10mA/12VDC , 100K
自鎖(Maintain) 10mA/12VDC , 20K
燈型(Symbol): 環燈Ring / 不帶燈non illumination
材質(material): 不鏽鋼( Stainless) / 鋅合金( Zinc)
LEE color: Red/Amber/Yellow/Blue/Green/White/(Red/Blue雙色)/(Red/Green 雙色)
產品特性
- 復歸式 / 自鎖式 開關動作
- 不銹鋼/鋁合金材質
- 天使眼背光形式
- 多種 LED背光顏色
- 面板防水等級 IP67
- 鍍金或鍍銀處理
- 有焊接型端子及PC端子
產品應用
- 通訊設備
- 手持式控制模組
- 保全設備
- 食品加工設備
- 工業機械設備
- 室外控制系統
- 交通: 大眾運輸系統、起重裝置
